1.8mm Lead Frame Axial

Datasheet

Information Inquiry:

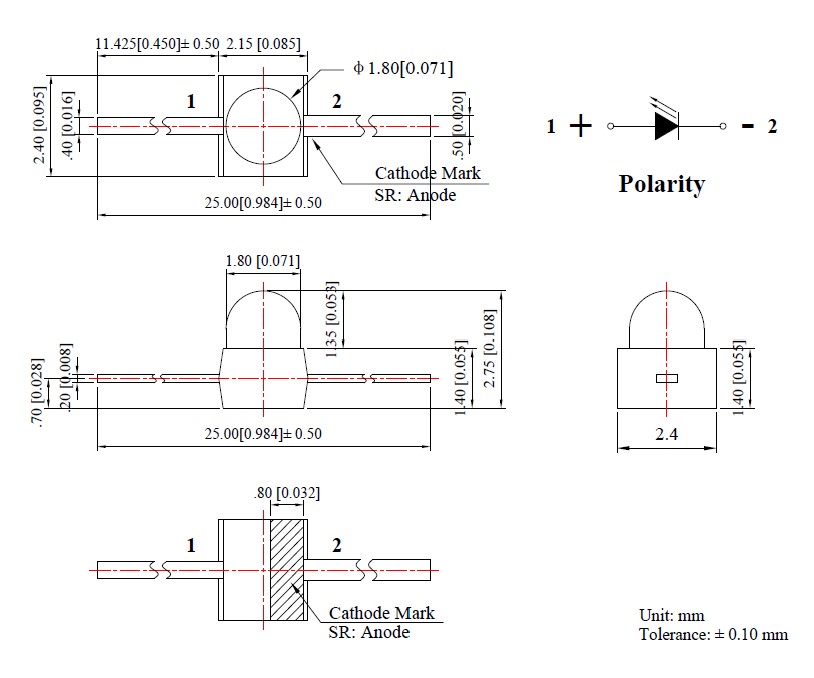

leadframe_1.8mm-CAD-01

1.8mm Lead Frame Axial / 1.35mm Lens Height

Product λD(nm) Current (mA) IV (mcd) VA 2θ1/2 Vf (V) Emission Color Lens Color
typ max
HTLP912USR 640 20 400 25 2.4 Super Red W.C.
HTLP912UR 624 20 1500 25 2.4 Hyper Red W.C.
HTLP912UY 590 20 1500 25 2.4 Yellow W.C.
HTLP912UYG 573 20 1500 25 2.4 Yellow Green W.C.
HTLP912UTG 525 20 2300 25 3.8 True Green W.C.
HTLP912UB 470 20 700 25 3.8 Blue W.C.
HTLP912UTW x=0.30 Y=0.31 20 2300 30 3.8 White T.D.
