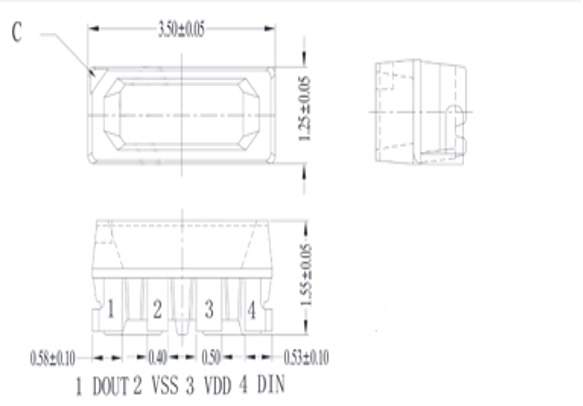

IN-PI31TAS5R5G5B / 3.5 x 1.25 x 1.55 (mm)
| Product | Emission Color | Current | Vf Typ. | Vf Max. | Wavelength (nm) | Viewing Angle | Luminous Intensity(mcd) |
|---|---|---|---|---|---|---|---|
|
IN-PI31TAS5R5G5B |
Red | 5 | 2.0 | 2.2 | 620 | 120 | 120 |
| Green | 5 | 2.8 | 3.2 | 525 | 120 | 450 | |
| Blue | 5 | 2.8 | 3.2 | 470 | 120 | 90 |
