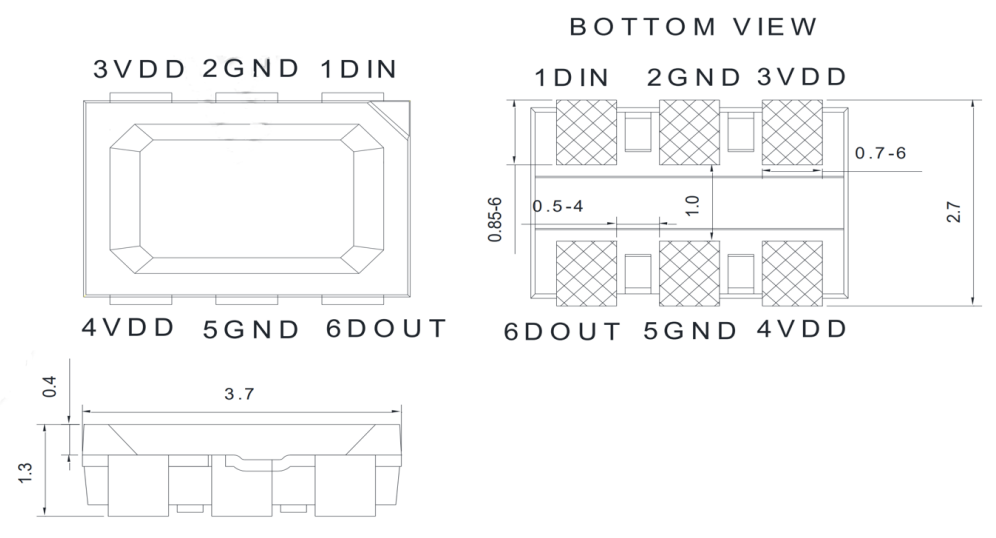

IN-PI3727TBTPRPGPB / 3.7 x 2.7 x 1.3 (mm)
| Product | Emission Color | Current | Vf Typ. | Vf Max. | Wavelength (nm) |
Viewing Angle | Luminous Intensity (mcd) |
|---|---|---|---|---|---|---|---|
|
IN-PI3727TBTPRPGPB |
Red | 12 | 2.0 | 2.2 | 620 | 120 | 350 |
| Green | 12 | 2.8 | 3.2 | 520 | 120 | 800 | |
| Blue | 12 | 2.0 | 3.2 | 465 | 120 | 180 |
