Datasheet

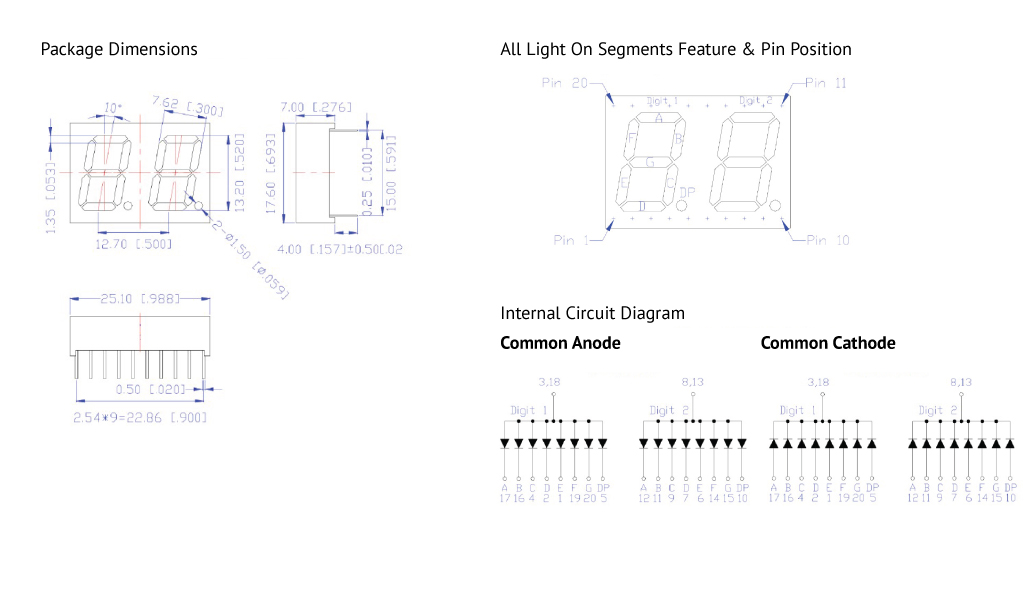

TD5.2

P/N	Polarity	IF(mA)	Color	λD (nm)	IV (mcd)	VF (V)
P/N	Polarity	IF(mA)	Color	λD (nm)	IV (mcd)	typ.	max
INND-TD52YGAG	Common Anode	25	Yellow Green	570	15	2	2.8
INND-TD52YGCG	Common Cathode	25	Yellow Green	570	15	2	2.8
INND-TD52YAG	Common Anode	25	Yellow	590	50	2	2.8
INND-TD52YCG	Common Cathode	25	Yellow	590	50	2	2.8
INND-TD52AAG	Common Anode	25	Amber	605	70	2	2.8
INND-TD52ACG	Common Cathode	25	Amber	605	70	2	2.8
INND-TD52RAG	Common Anode	25	Red	630	30	2	2.8
INND-TD52RCG	Common Cathode	25	Red	630	30	2	2.8
INND-TD52DRAG	Common Anode	25	Deep Red	645	25	2	2.8
INND-TD52DRCG	Common Cathode	25	Deep Red	645	25	2	2.8
INND-TD52GAG	Common Anode	30	Green	525	218	3.2	3.8
INND-TD52GCG	Common Cathode	30	Green	525	218	3.2	3.8
INND-TD52BAG	Common Anode	30	Blue	465	18	3.2	3.8
INND-TD52BCG	Common Cathode	30	Blue	465	18	3.2	3.8
INND-TD52WAG	Common Anode	30	White	X:0.27	108	3.2	3.8
INND-TD52WCG	Common Cathode	30	White	Y:0.25	108	3.2	3.8
